Product Design & Construction: 86-Inch Wall Mount Digital Signage

Engineered for high-traffic commercial environments, the 86-Inch Wall Mount Digital Signage is built around an industrial housing: Industrial SPCC cold-rolled steel wall-mounting enclosure with internal commercial power supply, concealed I/O routing, and 7H tempered glass face. Unlike consumer TVs with plastic enclosures, Viewix fabricates the chassis from heavy-gauge SPCC cold-rolled galvanized steel paired with CNC-machined 6063-T5 extruded aluminum alloy framing. Metal surfaces receive zinc-phosphate treatment and electrostatic powder coating (80–120 μm) for corrosion and abrasion resistance.

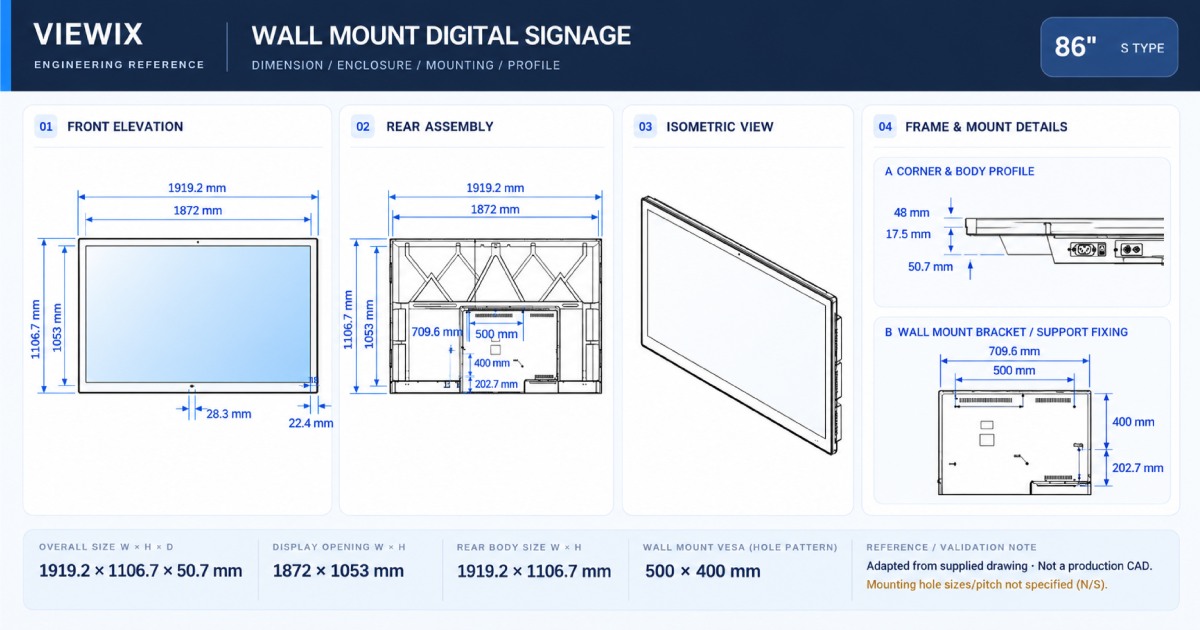

For the 86-inch configuration, the supplied engineering reference specifies an overall enclosure of 1919.2 × 1106.7 × 50.7 mm (W × H × D). The drawing lists a display opening of 1872 × 1053 mm; this is an enclosure opening dimension, not a separately verified active LCD area. The listed net weight is 66 kg. The front optical stack uses tempered safety glass. Mounting dimensions are recorded in the Technical Specifications section; confirm the final bracket, fasteners and installation drawing for the ordered configuration.

Within the product line, this 86-inch model serves as a high-impact large-format commercial display in the upper tier of the 22″–110″ range. Stepping up significantly from mid-sized 43″ and 55″ models, this 86-inch configuration commands visual authority across wide concourses, multi-lane drive-thrus, executive boardrooms, and high-ceiling public atriums, supporting simultaneous multi-zone split-screen layouts without sacrificing text legibility.

Key Features & Benefits of the 86-Inch Wall Mount Digital Signage

1. Commercial-Grade A+ Original Panel Architecture (BOE, TCL CSOT & AUO)

Every 86-Inch Wall Mount Digital Signage uses zero-bright-dot Original A+ commercial LCD cells from tier-one foundries: BOE (ADS) for 178°/178° off-axis color consistency, TCL CSOT (HVA) for 4,000:1 native contrast, and AUO (A-MVA) for thermal stability and uniform color across multi-site rollouts.

2. Optimized 350 – 500 cd/m² Luminance & 3840 x 2160 (4K Ultra HD) Optical Clarity

Calibrated to deliver 350 – 500 cd/m² brightness at native 3840 x 2160 (4K Ultra HD), the 86-inch screen ensures crisp typography and accurate brand colors. Precision backlight collimation maintains uniform brightness across the display under bright commercial lighting.

3. High-Transmittance Mohs-7H Tempered Glass & Anti-Glare Optics

Designed for dedicated non-touch digital broadcasting, the 86-Inch Wall Mount Digital Signage utilizes high-transmittance (>92%) 7H tempered safety glass with micro-diffusing anti-glare treatment. This protects the liquid crystal cell against IK08/IK10 blunt impacts in public corridors while preserving contrast and eliminating mirror reflections.

4. 24/7 Continuous Industrial Duty & Centralized Cloud CMS Control

Rated for a 50,000 to 60,000-hour MTBF lifespan, this 86-inch unit features an industrial power supply, a hardware watchdog timer for crash recovery, and native Viewix Cloud CMS support. IT teams can remotely schedule split-screen playlists, push OTA updates, and monitor screen health across hundreds of sites.

Hardware & System Configuration: 86-Inch Wall Mount Digital Signage

The 86-Inch Wall Mount Digital Signage supports both Android OS and Windows OS hardware configurations. The Android option integrates a Rockchip RK3568 (Android™ 13) or RK3576V (Android™ 14) SoC with 4GB RAM and 32GB/64GB eMMC ROM. The Windows option integrates an Intel® Core™ i5/i7 (10th/12th/14th Gen) modular PC with 8GB–16GB RAM and 256GB–512GB SSD running Windows 10/11 Pro/IoT.

Buyers can specify their preferred panel foundry—BOE (BE), TCL CSOT (TC), or AUO (AU)—alongside Optional 10-Point PCAP Multi-Touch or Non-Touch Tempered Glass. Standard I/O ports include HDMI 2.0, USB 3.0/2.0, Gigabit RJ45 LAN, dual-band 2.4G/5G Wi-Fi, Bluetooth 5.0+, RS-232 serial, and 3.5mm audio out, plus dual 10W stereo speakers. Every selection maps to a Viewix ERP SKU (e.g., WM-BE86-ANIB-VX) for exact BOM traceability.

Technical Specifications: 86-Inch Wall Mount Digital Signage

The table below details verified ERP specifications for the 86-Inch Wall Mount Digital Signage (Series WM-86), covering overall enclosure dimensions (1919.2 × 1106.7 × 50.7 mm), viewing distance (3.0–6.9 m), net weight (66 kg), and power draw (231W).

Drawing reference: Dimensions above follow the supplied engineering image. Display opening and active LCD area are different measurements.

OEM & ODM Customization Options for the 86-Inch Wall Mount Digital Signage

As a direct commercial display manufacturer, Viewix provides full OEM and ODM customization for the 86-Inch Wall Mount Digital Signage to meet project tender requirements:

• Peripheral Integration: Custom cutouts and internal harnesses for NFC/RFID readers, 2D barcode scanners, 80mm thermal printers, 4K AI cameras, 4G/5G modules, and light/motion sensors.

Available Sizes & Model Comparison: 86-Inch Wall Mount Digital Signage

The Wall Mount Digital Signage family is manufactured across 12 standardized commercial screen sizes (22″ to 110″), enabling multi-site B2B rollouts to share identical chassis aesthetics, CMS compatibility, and mounting brackets while scaling screen diagonal to each zone’s viewing distance. Compare the 86-inch configuration against sibling models below, or click any size link to view its dedicated page:

Applications & Deployment Scenarios for the 86-Inch Wall Mount Digital Signage

With its 86-inch (218.4 cm) diagonal and 3.0 m to 6.9 m optimal viewing range, the 86-Inch Wall Mount Digital Signage is engineered for high-visibility commercial installations across large concourse, flagship & lecture hall (60–120 m²) environments:

• Primary Commercial Scenarios: Ideal for QSR digital menu boards, corporate meeting room displays, hospital patient information screens, retail aisle promotions, and large-format lobby video walls, where its wall-mounted format captures foot traffic without overwhelming architectural sightlines.
• Retail, Hospitality & Corporate Rollouts: Deployed across chain retail stores, QSR menu boards, hotel reception concourses, banking branches, healthcare clinics, and transportation hubs requiring synchronized 24/7 visual communication.
• Integrated Turnkey Solutions: Supports CMS integration. For interactive training, campus instruction, and hybrid enterprise collaboration, explore our Interactive Learning & Collaboration Solution and full Commercial Display Solutions Portfolio.

Manufacturing & Quality Assurance: 86-Inch Wall Mount Digital Signage

Every 86-Inch Wall Mount Digital Signage is manufactured at Viewix’s ISO 9001:2015 certified production facility under strict multi-stage quality control protocols for international B2B procurement:

• Class-1000 Cleanroom Optical Assembly: LCD cells, diffuser sheets, and front glass are assembled inside dust-free, static-controlled cleanrooms to prevent internal dust or mura defects.
• 100% 72-Hour Continuous Thermal Aging Test: Before packaging, every 86-inch unit completes a mandatory 48-to-72-hour full-load burn-in test inside temperature-monitored aging chambers to eliminate early-life component failures.
• Optical, Touch & Electrical Safety Verification: Automated stations verify luminance uniformity, white balance, multi-point touch linearity, grounding continuity, and 1,500V AC high-pot dielectric withstand compliance.
• Global Export Compliance: Certified to CE, FCC Class B, and RoHS directives, with serialized QC reports archived per SKU batch.

Frequently Asked Questions About the 86-Inch Wall Mount Digital Signage

1. Is the 86-Inch Wall Mount Digital Signage the right size for my installation space?

The 86-inch model has overall enclosure dimensions of 1919.2 × 1106.7 × 50.7 mm and is optically calibrated for viewers positioned between 3.0 meters and 6.9 meters away, making it ideal for Large Concourse, Flagship & Lecture Hall (60–120 m²) locations. If your audience views from closer or farther distances, refer to our comparison table above to select an adjacent size in the 22″–110″ series.

2. How do I choose between BOE, TCL CSOT, and AUO panels or Android vs. Windows OS?

Choose BOE (ADS) for the widest off-axis viewing angles in bright spaces, TCL CSOT (HVA) for deep 4,000:1 contrast in luxury retail, or AUO for high thermal durability. Select Android OS for turnkey cloud CMS signage and low power consumption, or Windows OPS when running custom x86 enterprise software, POS peripherals, or video conferencing.

3. What OEM/ODM customizations and Minimum Order Quantities (MOQ) are supported?

Standard configurations of the 86-Inch Wall Mount Digital Signage support flexible trial orders starting from 1 to 5 units. Custom RAL enclosure colors (code C) are supported at low project MOQs (typically 10–20 units), while bespoke sheet-metal tooling for peripheral bays is engineered per project volume.

4. Can we order a sample unit for software integration and pilot testing?

Yes. Viewix supports sample unit orders of the exact WM-BE86-ANIB-VX configuration so your engineering team can validate CMS compatibility, touch drivers, and physical mounting prior to bulk factory production.

5. What warranty, spare parts, and installation accessories are included?

Every unit includes a 2-year comprehensive factory commercial warranty, standard mounting hardware (Heavy-Duty VESA Wall-Mount Bracket with Security Locking Screws), power cords matched to your destination country, and optional 1%–2% spare modular boards (power supplies, mainboards) for rapid on-site maintenance.
