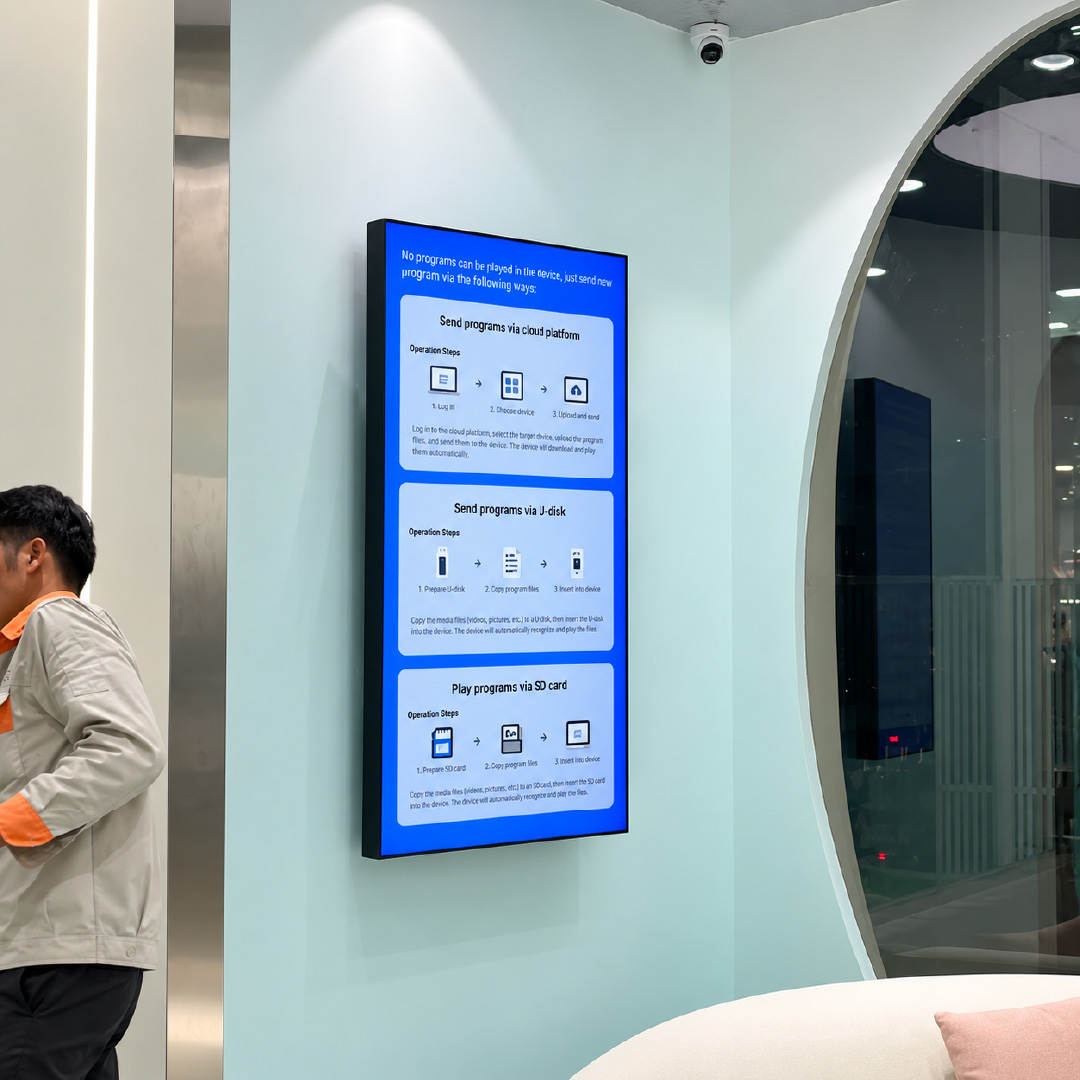

50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage

Product Design & Construction: 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage

Engineered for high-traffic commercial environments, the 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage is built around an industrial housing: Ultra-narrow micro-bezel anodized aluminum frame with razor-thin cabinet depth, recessed cable channels, and precision flush wall-mounting alignment. Unlike consumer TVs with plastic enclosures, Viewix fabricates the chassis from heavy-gauge SPCC cold-rolled galvanized steel paired with CNC-machined 6063-T5 extruded aluminum alloy framing. Metal surfaces receive zinc-phosphate treatment and electrostatic powder coating (80–120 μm) for corrosion and abrasion resistance.

For the 50-inch configuration, the active optical window measures 1106.9 mm (W) × 622.6 mm (H) within an external cabinet envelope of approximately 1154.9 mm × 670.6 mm × 48.0 mm and a net weight of 34 kg. The front optical stack is protected by thermally toughened 4 mm to 6 mm Mohs-7H safety glass flush-bonded against dust gaskets. Installation is standardized via Flush Architectural Wall-Mount Bracket (Landscape & Portrait) with concealed cable channels and key-locked service doors.

Within the product line, this 50-inch model serves as the core mainstream commercial standard within the 43″–65″ product lineup. Bridging compact 43″ units and monumental 65″ formats, the 50-inch diagonal aligns with eye-level human ergonomics and standard architectural ceiling heights. It provides roughly 1.4x the active display area of the 43″ model without requiring heavy structural wall reinforcement.

Key Features & Benefits of the 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage

1. Commercial-Grade A+ Original Panel Architecture (BOE, TCL CSOT & AUO)

Every 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage uses zero-bright-dot Original A+ commercial LCD cells from tier-one foundries: BOE (ADS) for 178°/178° off-axis color consistency, TCL CSOT (HVA) for 4,000:1 native contrast, and AUO (A-MVA) for thermal stability and uniform color across multi-site rollouts.

2. Optimized 400 – 500 cd/m² Luminance & 3840 x 2160 (4K Ultra HD) Optical Clarity

Calibrated to deliver 400 – 500 cd/m² brightness at native 3840 x 2160 (4K Ultra HD) (0.288 mm pitch, 88.1 PPI), the 50-inch screen ensures crisp typography and accurate brand colors. Precision backlight collimation maintains uniform brightness across the 0.689 m² canvas under bright commercial lighting.

3. High-Precision Interactive Touch & Mohs-7H Tempered Protection

Equipped with Non-Touch Tempered Optical Safety Glass, the 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage delivers sub-8ms touch response latency and multi-finger gesture tracking (pinch, zoom, rotate, swipe). The chemically etched anti-glare (AG) and oleophobic anti-fingerprint (AF) glass eliminates overhead reflections while resisting public wear in unattended self-service deployments.

4. 24/7 Continuous Industrial Duty & Centralized Cloud CMS Control

Rated for a 50,000 to 60,000-hour MTBF lifespan, this 50-inch unit features an industrial power supply, a hardware watchdog timer for crash recovery, and native Viewix Cloud CMS support. IT teams can remotely schedule split-screen playlists, push OTA updates, and monitor screen health across hundreds of sites.

Hardware & System Configuration: 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage

The 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage runs on a dedicated Commercial Android OS platform for fanless 24/7 media playback. Buyers can configure the Rockchip RK3568 Quad-Core SoC (4GB RAM + 32GB ROM, Android™ 13, 350–400 Nits) or the Rockchip RK3576V Octa-Core SoC (4GB RAM + 32GB/64GB ROM, Android™ 14, 400–500 Nits) with hardware 4K@60fps H.265 and AV1 decoding.

Buyers can specify their preferred panel foundry—BOE (BE), TCL CSOT (TC), or AUO (AU)—alongside Non-Touch Tempered Optical Safety Glass. Standard I/O ports include HDMI 2.0, USB 3.0/2.0, Gigabit RJ45 LAN, dual-band 2.4G/5G Wi-Fi, Bluetooth 5.0+, RS-232 serial, and 3.5mm audio out, plus dual 10W stereo speakers. Every selection maps to a Viewix ERP SKU (e.g., WS45-BE50-ANIB-VX) for exact BOM traceability.

Technical Specifications: 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage

The table below details verified ERP specifications for the 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage (Series WS45-50), covering active area (1106.9 × 622.6 mm), viewing distance (1.8–4.0 m), net weight (34 kg), and power draw (124W).

OEM & ODM Customization Options for the 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage

As a direct commercial display manufacturer, Viewix provides full OEM and ODM customization for the 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage to meet project tender requirements:

• Peripheral Integration: Custom cutouts and internal harnesses for NFC/RFID readers, 2D barcode scanners, 80mm thermal printers, 4K AI cameras, 4G/5G modules, and light/motion sensors.

Available Sizes & Model Comparison: 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage

The Ultra-Slim Bezel Wall-Mounted Digital Signage family is manufactured across 4 standardized commercial screen sizes (43″ to 65″), enabling multi-site B2B rollouts to share identical chassis aesthetics, CMS compatibility, and mounting brackets while scaling screen diagonal to each zone’s viewing distance. Compare the 50-inch configuration against sibling models below, or click any size link to view its dedicated page:

Applications & Deployment Scenarios for the 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage

With its 50-inch (127.0 cm) diagonal and 1.8 m to 4.0 m optimal viewing range, the 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage is engineered for high-visibility commercial installations across medium commercial & corridor zone (12–30 m²) environments:

• Primary Commercial Scenarios: Ideal for Synchronized QSR digital menu ribbons, luxury fashion boutique feature walls, corporate executive lobbies, and modern gallery displays, where its 1106.9 × 622.6 mm active screen area captures foot traffic without overwhelming architectural sightlines.
• Retail, Hospitality & Corporate Rollouts: Deployed across chain retail stores, QSR menu boards, hotel reception concourses, banking branches, healthcare clinics, and transportation hubs requiring synchronized 24/7 visual communication.
• Integrated Turnkey Solutions: Supports CMS integration. For interactive training, campus instruction, and hybrid enterprise collaboration, explore our Interactive Learning & Collaboration Solution and full Commercial Display Solutions Portfolio.

Manufacturing & Quality Assurance: 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage

Every 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage is manufactured at Viewix’s ISO 9001:2015 certified production facility under strict multi-stage quality control protocols for international B2B procurement:

• Class-1000 Cleanroom Optical Assembly: LCD cells, diffuser sheets, and front glass are assembled inside dust-free, static-controlled cleanrooms to prevent internal dust or mura defects.
• 100% 72-Hour Continuous Thermal Aging Test: Before packaging, every 50-inch unit completes a mandatory 48-to-72-hour full-load burn-in test inside temperature-monitored aging chambers to eliminate early-life component failures.
• Optical, Touch & Electrical Safety Verification: Automated stations verify luminance uniformity, white balance, multi-point touch linearity, grounding continuity, and 1,500V AC high-pot dielectric withstand compliance.
• Global Export Compliance: Certified to CE, FCC Class B, and RoHS directives, with serialized QC reports archived per SKU batch.

Frequently Asked Questions About the 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage

1. Is the 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage the right size for my installation space?

The 50-inch model features an active display area of 1106.9 × 622.6 mm and is optically calibrated for viewers positioned between 1.8 meters and 4.0 meters away, making it ideal for Medium Commercial & Corridor Zone (12–30 m²) locations. If your audience views from closer or farther distances, refer to our comparison table above to select an adjacent size in the 43″–65″ series.

2. How do I choose between BOE, TCL CSOT, and AUO panels or Android vs. Windows OS?

Choose BOE (ADS) for the widest off-axis viewing angles in bright spaces, TCL CSOT (HVA) for deep 4,000:1 contrast in luxury retail, or AUO for high thermal durability. Select Android OS for turnkey cloud CMS signage and low power consumption, or Windows OPS when running custom x86 enterprise software, POS peripherals, or video conferencing.

3. What OEM/ODM customizations and Minimum Order Quantities (MOQ) are supported?

Standard configurations of the 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage support flexible trial orders starting from 1 to 5 units. Custom RAL enclosure colors (code C) are supported at low project MOQs (typically 10–20 units), while bespoke sheet-metal tooling for peripheral bays is engineered per project volume.

4. Can we order a sample unit for software integration and pilot testing?

Yes. Viewix supports sample unit orders of the exact WS45-BE50-ANIB-VX configuration so your engineering team can validate CMS compatibility, touch drivers, and physical mounting prior to bulk factory production.

5. What warranty, spare parts, and installation accessories are included?

Every unit includes a 2-year comprehensive factory commercial warranty, standard mounting hardware (Flush Architectural Wall-Mount Bracket (Landscape & Portrait)), power cords matched to your destination country, and optional 1%–2% spare modular boards (power supplies, mainboards) for rapid on-site maintenance.

Request a Factory Quote for the 50-Inch Ultra-Slim Bezel Wall-Mounted Digital Signage
