43-Inch High-Brightness Floor-Standing Digital Signage

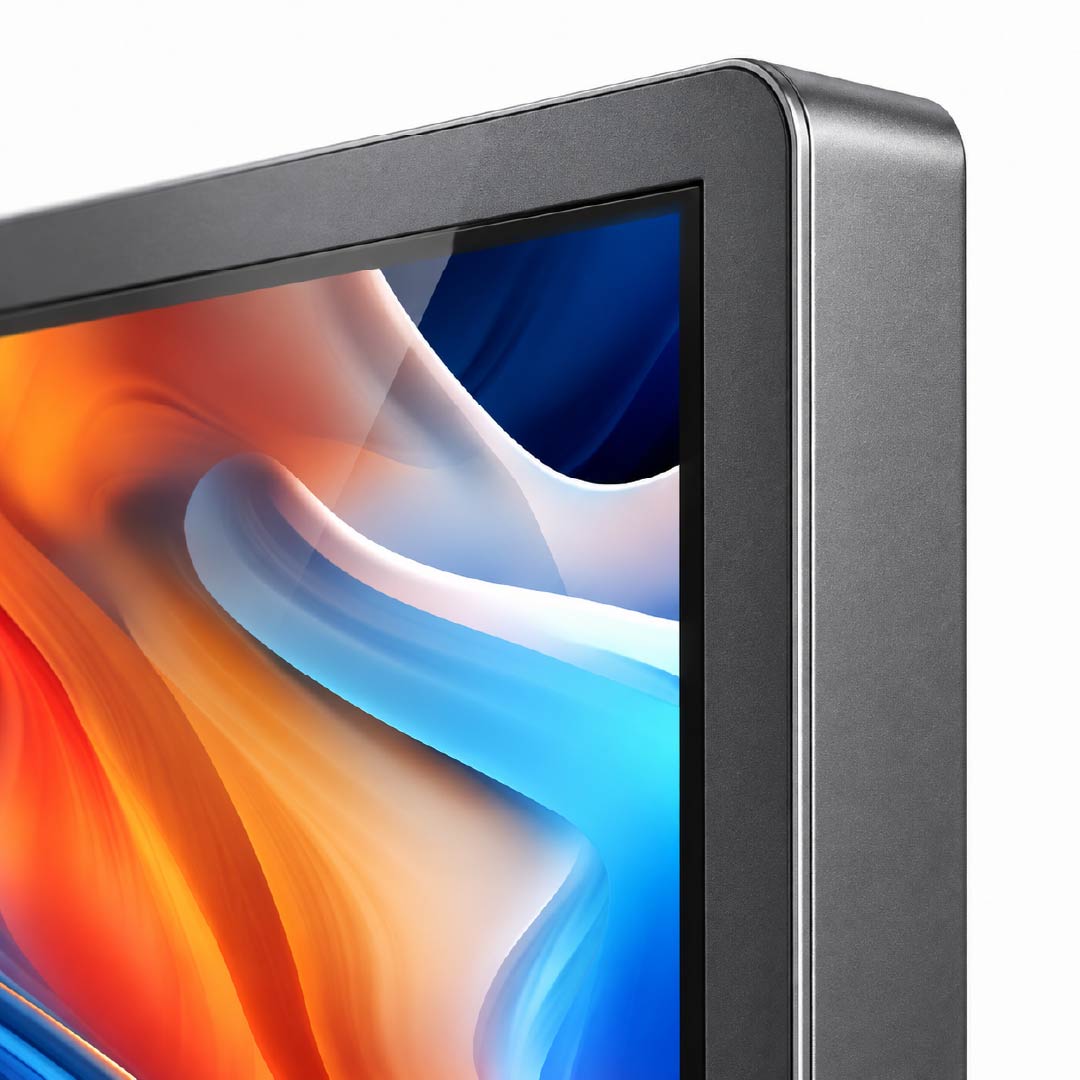

Product Design & Construction: 43-Inch High-Brightness Floor-Standing Digital Signage

Engineered for high-traffic commercial environments, the 43-Inch High-Brightness Floor-Standing Digital Signage is built around an industrial housing: Thermally reinforced floor-standing steel chassis with 110°C high-TNI solar-resistant liquid crystal cell, active cross-flow cooling fans, and ambient light sensor. Unlike consumer TVs with plastic enclosures, Viewix fabricates the chassis from heavy-gauge SPCC cold-rolled galvanized steel paired with CNC-machined 6063-T5 extruded aluminum alloy framing. Metal surfaces receive zinc-phosphate treatment and electrostatic powder coating (80–120 μm) for corrosion and abrasion resistance.

For the 43-inch configuration, the active optical window measures 951.9 mm (W) × 535.5 mm (H) within an external cabinet envelope of approximately 999.9 mm × 583.5 mm × 48.0 mm and a net weight of 28 kg. The front optical stack is protected by thermally toughened 4 mm to 6 mm Mohs-7H safety glass flush-bonded against dust gaskets. Installation is standardized via Floor-Standing Window-Facing Pedestal or Floor-to-Ceiling Mount with concealed cable channels and key-locked service doors.

Within the product line, this 43-inch model serves as the most compact and space-efficient entry configuration in the 43″–65″ product family. Compared with larger sizes in the series (which scale up to 65 inches), this 43-inch edition minimizes structural wall load and floor footprint, allowing installation inside tight architectural alcoves, narrow elevator cabs, compact service counters, and close-proximity pedestrian zones where viewers stand within 0.5 to 2.0 meters.

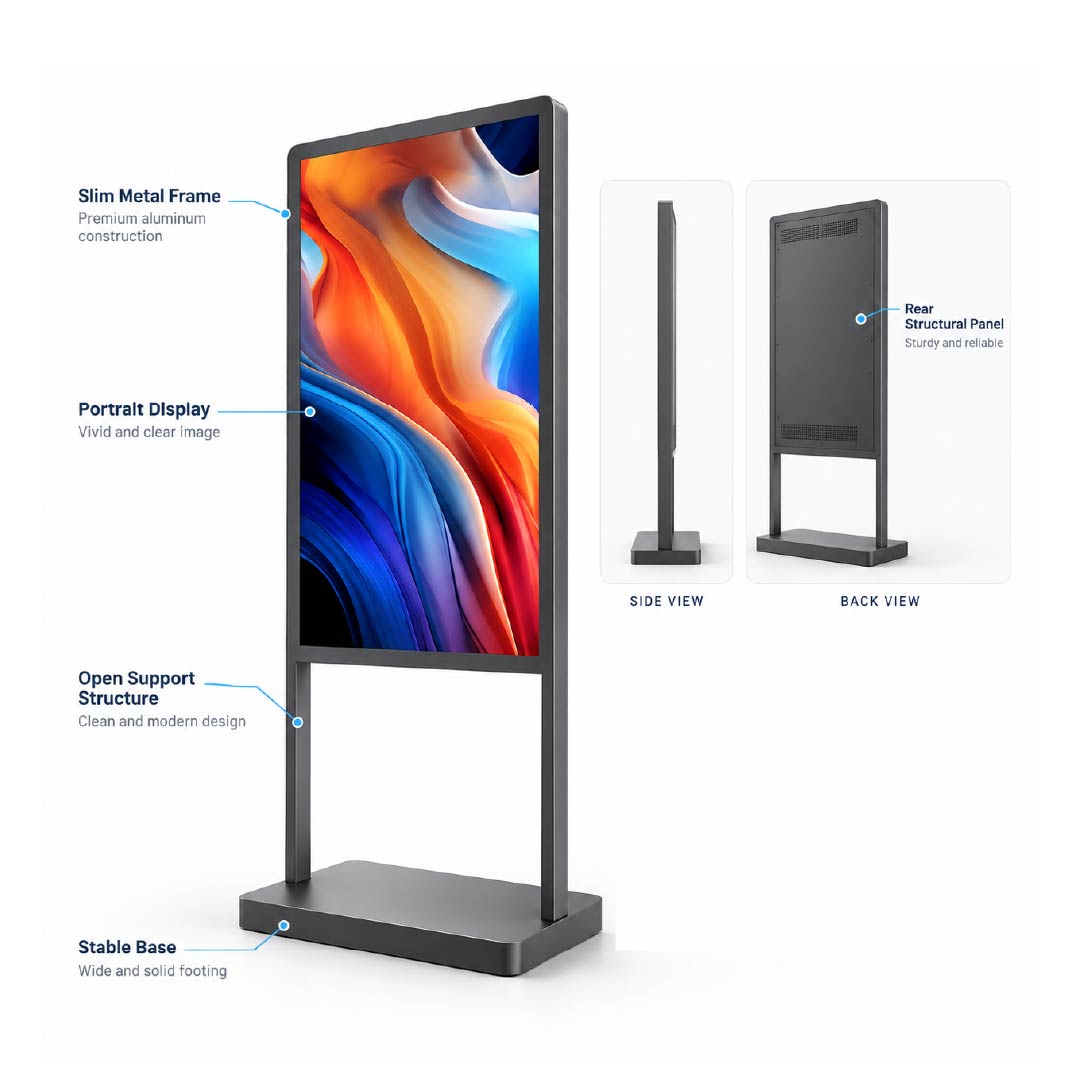

Key Features & Benefits of the 43-Inch High-Brightness Floor-Standing Digital Signage

1. Commercial-Grade A+ Original Panel Architecture (BOE, TCL CSOT & AUO)

Every 43-Inch High-Brightness Floor-Standing Digital Signage uses zero-bright-dot Original A+ commercial LCD cells from tier-one foundries: BOE (ADS) for 178°/178° off-axis color consistency, TCL CSOT (HVA) for 4,000:1 native contrast, and AUO (A-MVA) for thermal stability and uniform color across multi-site rollouts.

2. Optimized 2,000 – 3,000 cd/m² (Sunlight Readable) Luminance & 3840 x 2160 (4K Ultra HD) Optical Clarity

Calibrated to deliver 2,000 – 3,000 cd/m² (Sunlight Readable) brightness at native 3840 x 2160 (4K Ultra HD) (0.248 mm pitch, 102.5 PPI), the 43-inch screen ensures crisp typography and accurate brand colors. High-TNI (110°C) liquid crystal chemistry and ambient light sensors prevent solar blackening under direct sunlight while optimizing nighttime power draw.

3. High-Transmittance Mohs-7H Tempered Glass & Anti-Glare Optics

Designed for dedicated non-touch digital broadcasting, the 43-Inch High-Brightness Floor-Standing Digital Signage utilizes high-transmittance (>92%) 7H tempered safety glass with micro-diffusing anti-glare treatment. This protects the liquid crystal cell against IK08/IK10 blunt impacts in public corridors while preserving contrast and eliminating mirror reflections.

4. 24/7 Continuous Industrial Duty & Centralized Cloud CMS Control

Rated for a 50,000 to 60,000-hour MTBF lifespan, this 43-inch unit features an industrial power supply, a hardware watchdog timer for crash recovery, and native Viewix Cloud CMS support. IT teams can remotely schedule split-screen playlists, push OTA updates, and monitor screen health across hundreds of sites.

Hardware & System Configuration: 43-Inch High-Brightness Floor-Standing Digital Signage

The 43-Inch High-Brightness Floor-Standing Digital Signage supports both Android OS and Windows OS hardware configurations. The Android option integrates a Rockchip RK3568 (Android™ 13) or RK3576V (Android™ 14) SoC with 4GB RAM and 32GB/64GB eMMC ROM. The Windows option integrates an Intel® Core™ i5/i7 (10th/12th/14th Gen) modular PC with 8GB–16GB RAM and 256GB–512GB SSD running Windows 10/11 Pro/IoT.

Buyers can specify their preferred panel foundry—BOE (BE), TCL CSOT (TC), or AUO (AU)—alongside Optional 10-Point PCAP Multi-Touch or Non-Touch Tempered Glass. Standard I/O ports include HDMI 2.0, USB 3.0/2.0, Gigabit RJ45 LAN, dual-band 2.4G/5G Wi-Fi, Bluetooth 5.0+, RS-232 serial, and 3.5mm audio out, plus dual 10W stereo speakers. Every selection maps to a Viewix ERP SKU (e.g., FHS-BE43-ANIB-VX) for exact BOM traceability.

Technical Specifications: 43-Inch High-Brightness Floor-Standing Digital Signage

The table below details verified ERP specifications for the 43-Inch High-Brightness Floor-Standing Digital Signage (Series FHS-43), covering active area (951.9 × 535.5 mm), viewing distance (1.5–3.4 m), net weight (28 kg), and power draw (105W).

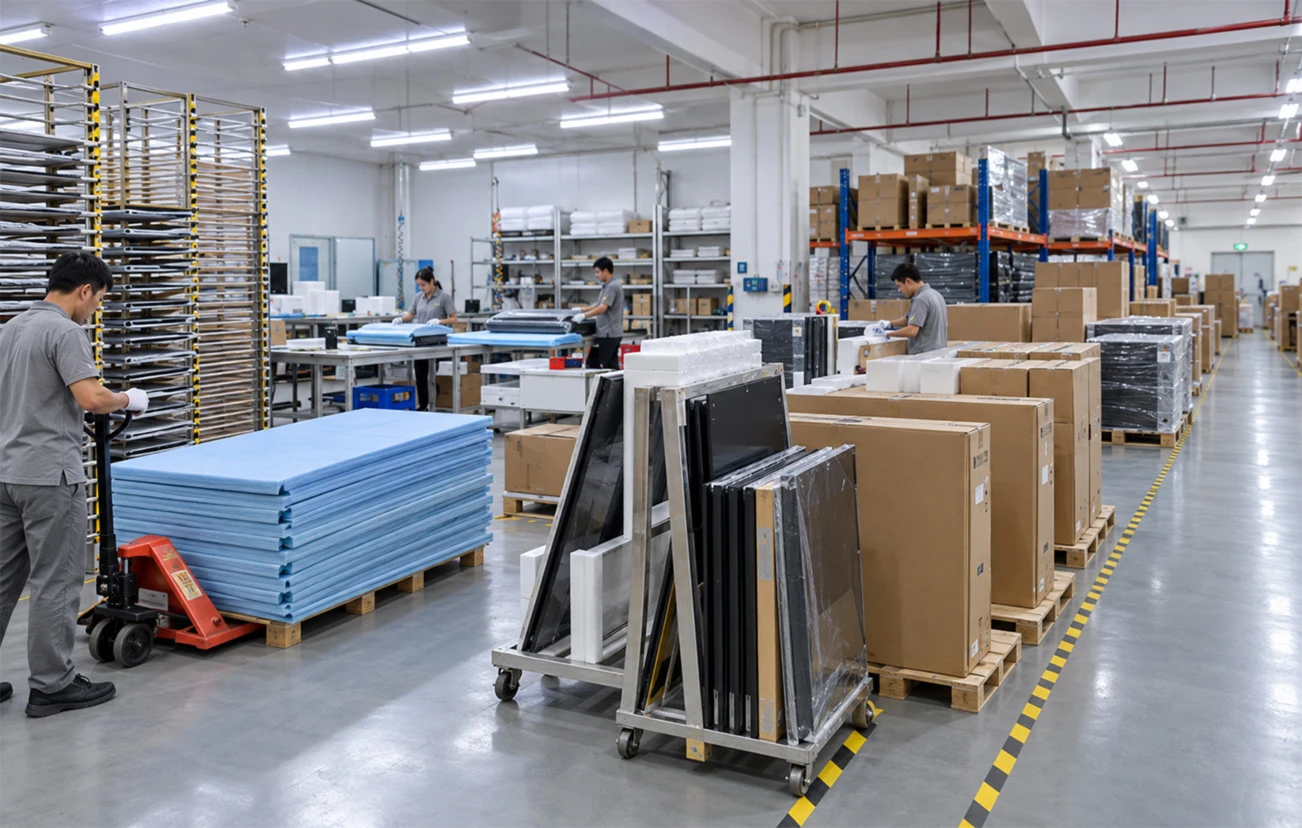

OEM & ODM Customization Options for the 43-Inch High-Brightness Floor-Standing Digital Signage

As a direct commercial display manufacturer, Viewix provides full OEM and ODM customization for the 43-Inch High-Brightness Floor-Standing Digital Signage to meet project tender requirements:

• Peripheral Integration: Custom cutouts and internal harnesses for NFC/RFID readers, 2D barcode scanners, 80mm thermal printers, 4K AI cameras, 4G/5G modules, and light/motion sensors.

Available Sizes & Model Comparison: 43-Inch High-Brightness Floor-Standing Digital Signage

The High-Brightness Floor-Standing Digital Signage family is manufactured across 4 standardized commercial screen sizes (43″ to 65″), enabling multi-site B2B rollouts to share identical chassis aesthetics, CMS compatibility, and mounting brackets while scaling screen diagonal to each zone’s viewing distance. Compare the 43-inch configuration against sibling models below, or click any size link to view its dedicated page:

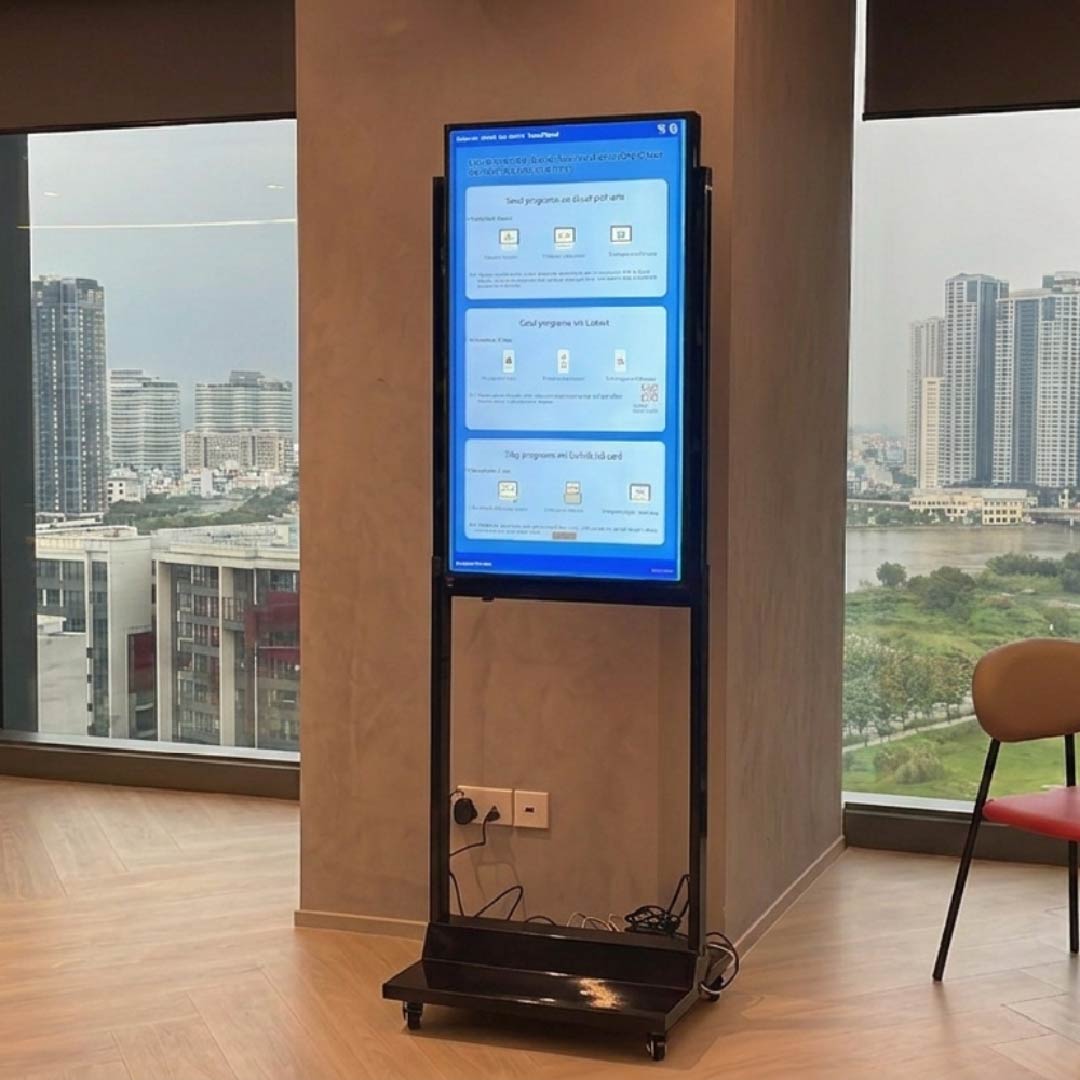

Applications & Deployment Scenarios for the 43-Inch High-Brightness Floor-Standing Digital Signage

With its 43-inch (109.2 cm) diagonal and 1.5 m to 3.4 m optimal viewing range, the 43-Inch High-Brightness Floor-Standing Digital Signage is engineered for high-visibility commercial installations across medium commercial & corridor zone (12–30 m²) environments:

• Primary Commercial Scenarios: Ideal for Sunlit street-facing retail display windows, real estate agency glass storefronts, bank branch exteriors, and glass-enclosed commercial atriums, where its 951.9 × 535.5 mm active screen area captures foot traffic without overwhelming architectural sightlines.
• Retail, Hospitality & Corporate Rollouts: Deployed across chain retail stores, QSR menu boards, hotel reception concourses, banking branches, healthcare clinics, and transportation hubs requiring synchronized 24/7 visual communication.
• Integrated Turnkey Solutions: Supports CMS integration. For interactive training, campus instruction, and hybrid enterprise collaboration, explore our Interactive Learning & Collaboration Solution and full Commercial Display Solutions Portfolio.

Manufacturing & Quality Assurance: 43-Inch High-Brightness Floor-Standing Digital Signage

Every 43-Inch High-Brightness Floor-Standing Digital Signage is manufactured at Viewix’s ISO 9001:2015 certified production facility under strict multi-stage quality control protocols for international B2B procurement:

• Class-1000 Cleanroom Optical Assembly: LCD cells, diffuser sheets, and front glass are assembled inside dust-free, static-controlled cleanrooms to prevent internal dust or mura defects.
• 100% 72-Hour Continuous Thermal Aging Test: Before packaging, every 43-inch unit completes a mandatory 48-to-72-hour full-load burn-in test inside temperature-monitored aging chambers to eliminate early-life component failures.
• Optical, Touch & Electrical Safety Verification: Automated stations verify luminance uniformity, white balance, multi-point touch linearity, grounding continuity, and 1,500V AC high-pot dielectric withstand compliance.
• Global Export Compliance: Certified to CE, FCC Class B, and RoHS directives, with serialized QC reports archived per SKU batch.

Frequently Asked Questions About the 43-Inch High-Brightness Floor-Standing Digital Signage

1. Is the 43-Inch High-Brightness Floor-Standing Digital Signage the right size for my installation space?

The 43-inch model features an active display area of 951.9 × 535.5 mm and is optically calibrated for viewers positioned between 1.5 meters and 3.4 meters away, making it ideal for Medium Commercial & Corridor Zone (12–30 m²) locations. If your audience views from closer or farther distances, refer to our comparison table above to select an adjacent size in the 43″–65″ series.

2. How do I choose between BOE, TCL CSOT, and AUO panels or Android vs. Windows OS?

Choose BOE (ADS) for the widest off-axis viewing angles in bright spaces, TCL CSOT (HVA) for deep 4,000:1 contrast in luxury retail, or AUO for high thermal durability. Select Android OS for turnkey cloud CMS signage and low power consumption, or Windows OPS when running custom x86 enterprise software, POS peripherals, or video conferencing.

3. What OEM/ODM customizations and Minimum Order Quantities (MOQ) are supported?

Standard configurations of the 43-Inch High-Brightness Floor-Standing Digital Signage support flexible trial orders starting from 1 to 5 units. Custom RAL enclosure colors (code C) are supported at low project MOQs (typically 10–20 units), while bespoke sheet-metal tooling for peripheral bays is engineered per project volume.

4. Can we order a sample unit for software integration and pilot testing?

Yes. Viewix supports sample unit orders of the exact FHS-BE43-ANIB-VX configuration so your engineering team can validate CMS compatibility, touch drivers, and physical mounting prior to bulk factory production.

5. What warranty, spare parts, and installation accessories are included?

Every unit includes a 2-year comprehensive factory commercial warranty, standard mounting hardware (Floor-Standing Window-Facing Pedestal or Floor-to-Ceiling Mount), power cords matched to your destination country, and optional 1%–2% spare modular boards (power supplies, mainboards) for rapid on-site maintenance.
