21.5-Inch Wall-Mounted Elevator Digital Signage

Product Design & Construction: 21.5-Inch Wall-Mounted Elevator Digital Signage

Engineered for high-traffic commercial environments, the 21.5-Inch Wall-Mounted Elevator Digital Signage is built around an industrial housing: Ultra-slim low-profile integrated metal chassis with anti-vibration mechanical fasteners, flush ADA-compliant wall depth, and 4mm tempered safety front glass. Unlike consumer TVs with plastic enclosures, Viewix fabricates the chassis from heavy-gauge SPCC cold-rolled galvanized steel paired with CNC-machined 6063-T5 extruded aluminum alloy framing. Metal surfaces receive zinc-phosphate treatment and electrostatic powder coating (80–120 μm) for corrosion and abrasion resistance.

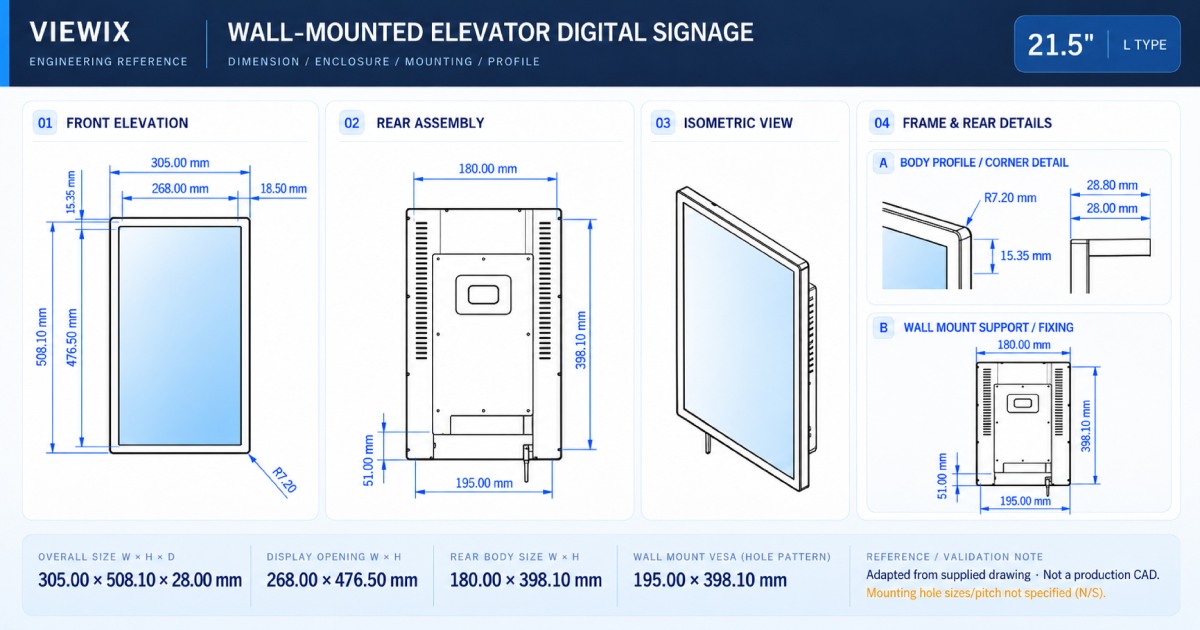

For the 21.5-inch configuration, the drawing summary lists an enclosure of 305.00 × 508.10 × 28.00 mm (W × H × D) and a display opening of 268.00 × 476.50 mm. The opening is not a separately verified active LCD area. Confirm final dimensions and mounting details before installation.

Within the product line, this 21.5-inch model serves as a compact-to-mid-range commercial configuration within the 15.6″–43″ series. Positioned above the entry 15.6″ unit while remaining far more compact than large-venue 43″ displays, the 21.5-inch version strikes an ergonomic balance for intimate point-of-decision touchpoints, corridor wayfinding, and individual check-in stations.

Key Features & Benefits of the 21.5-Inch Wall-Mounted Elevator Digital Signage

1. Commercial-Grade A+ Original Panel Architecture (BOE, TCL CSOT & AUO)

Every 21.5-Inch Wall-Mounted Elevator Digital Signage uses zero-bright-dot Original A+ commercial LCD cells from tier-one foundries: BOE (ADS) for 178°/178° off-axis color consistency, TCL CSOT (HVA) for 4,000:1 native contrast, and AUO (A-MVA) for thermal stability and uniform color across multi-site rollouts.

2. Optimized 350 – 450 cd/m² Luminance & 1920 x 1080 (Full HD) Optical Clarity

Calibrated to deliver 350 – 450 cd/m² brightness at native 1920 x 1080 (Full HD), the 21.5-inch screen ensures crisp typography and accurate brand colors. Precision backlight collimation maintains uniform brightness across the display under bright commercial lighting.

3. Non-Touch Tempered Glass Protection

This product configurator lists non-touch operation. Confirm glass specification and surface treatment for the ordered configuration; gesture tracking and touch-response specifications do not apply to the listed non-touch version.

4. 24/7 Continuous Industrial Duty & Centralized Cloud CMS Control

Rated for a 50,000 to 60,000-hour MTBF lifespan, this 21.5-inch unit features an industrial power supply, a hardware watchdog timer for crash recovery, and native Viewix Cloud CMS support. IT teams can remotely schedule split-screen playlists, push OTA updates, and monitor screen health across hundreds of sites.

Hardware & System Configuration: 21.5-Inch Wall-Mounted Elevator Digital Signage

The 21.5-Inch Wall-Mounted Elevator Digital Signage runs on a dedicated Commercial Android OS platform for fanless 24/7 media playback. Buyers can configure the Rockchip RK3568 Quad-Core SoC (4GB RAM + 32GB ROM, Android™ 13, 350–400 Nits) or the Rockchip RK3576V Octa-Core SoC (4GB RAM + 32GB/64GB ROM, Android™ 14, 400–500 Nits) with hardware 4K@60fps H.265 and AV1 decoding.

Buyers can specify their preferred panel foundry—BOE (BE), TCL CSOT (TC), or AUO (AU)—alongside Non-Touch Tempered Optical Safety Glass. Standard I/O ports include HDMI 2.0, USB 3.0/2.0, Gigabit RJ45 LAN, dual-band 2.4G/5G Wi-Fi, Bluetooth 5.0+, RS-232 serial, and 3.5mm audio out, plus dual 10W stereo speakers. Every selection maps to a Viewix ERP SKU (e.g., ELV-BE21-ANIB-VX) for exact BOM traceability.

Technical Specifications: 21.5-Inch Wall-Mounted Elevator Digital Signage

Mechanical values follow the supplied engineering image. The remaining electrical and optical values are listed configuration information and must be confirmed in the quotation.

OEM & ODM Customization Options for the 21.5-Inch Wall-Mounted Elevator Digital Signage

As a direct commercial display manufacturer, Viewix provides full OEM and ODM customization for the 21.5-Inch Wall-Mounted Elevator Digital Signage to meet project tender requirements:

• Peripheral Integration: Custom cutouts and internal harnesses for NFC/RFID readers, 2D barcode scanners, 80mm thermal printers, 4K AI cameras, 4G/5G modules, and light/motion sensors.

Available Sizes & Model Comparison: 21.5-Inch Wall-Mounted Elevator Digital Signage

The configurator lists seven nominal sizes from 15.6 to 43 inches. Compare the supplied mechanical references below, and confirm final installation dimensions for the ordered model.

Applications & Deployment Scenarios for the 21.5-Inch Wall-Mounted Elevator Digital Signage

With its 21.5-inch (54.6 cm) diagonal and 0.8 m to 1.7 m optimal viewing range, the 21.5-Inch Wall-Mounted Elevator Digital Signage is engineered for high-visibility commercial installations across compact close-range zone (1–4 m²) environments:

• Primary Commercial Scenarios: Ideal for Elevator cab interiors, residential and office lift lobbies, narrow corridor columns, and retail shelf-end promotional headers, where its wall-mounted format presents information without overwhelming architectural sightlines.
• Retail, Hospitality & Corporate Rollouts: Deployed across chain retail stores, QSR menu boards, hotel reception concourses, banking branches, healthcare clinics, and transportation hubs requiring synchronized 24/7 visual communication.
• Integrated Turnkey Solutions: Supports CMS integration. For interactive training, campus instruction, and hybrid enterprise collaboration, explore our Interactive Learning & Collaboration Solution and full Commercial Display Solutions Portfolio.

Manufacturing & Quality Assurance: 21.5-Inch Wall-Mounted Elevator Digital Signage

Every 21.5-Inch Wall-Mounted Elevator Digital Signage is manufactured at Viewix’s ISO 9001:2015 certified production facility under strict multi-stage quality control protocols for international B2B procurement:

• Class-1000 Cleanroom Optical Assembly: LCD cells, diffuser sheets, and front glass are assembled inside dust-free, static-controlled cleanrooms to prevent internal dust or mura defects.
• 100% 72-Hour Continuous Thermal Aging Test: Before packaging, every 21.5-inch unit completes a mandatory 48-to-72-hour full-load burn-in test inside temperature-monitored aging chambers to eliminate early-life component failures.
• Optical, Touch & Electrical Safety Verification: Automated stations verify luminance uniformity, white balance, multi-point touch linearity, grounding continuity, and 1,500V AC high-pot dielectric withstand compliance.
• Global Export Compliance: Certified to CE, FCC Class B, and RoHS directives, with serialized QC reports archived per SKU batch.

Frequently Asked Questions About the 21.5-Inch Wall-Mounted Elevator Digital Signage

1. Is the 21.5-Inch Wall-Mounted Elevator Digital Signage the right size for my installation space?

The 21.5-inch model has reference enclosure dimensions of 305.00 × 508.10 × 28.00 mm and is optically calibrated for viewers positioned between 0.8 meters and 1.7 meters away, making it ideal for Compact Close-Range Zone (1–4 m²) locations. If your audience views from closer or farther distances, refer to our comparison table above to select an adjacent size in the 15.6″–43″ series.

2. How do I choose between BOE, TCL CSOT, and AUO panels or Android vs. Windows OS?

Choose BOE (ADS) for the widest off-axis viewing angles in bright spaces, TCL CSOT (HVA) for deep 4,000:1 contrast in luxury retail, or AUO for high thermal durability. Select Android OS for turnkey cloud CMS signage and low power consumption, or Windows OPS when running custom x86 enterprise software, POS peripherals, or video conferencing.

3. What OEM/ODM customizations and Minimum Order Quantities (MOQ) are supported?

Standard configurations of the 21.5-Inch Wall-Mounted Elevator Digital Signage support flexible trial orders starting from 1 to 5 units. Custom RAL enclosure colors (code C) are supported at low project MOQs (typically 10–20 units), while bespoke sheet-metal tooling for peripheral bays is engineered per project volume.

4. Can we order a sample unit for software integration and pilot testing?

Yes. Viewix supports sample unit orders of the exact ELV-BE21-ANIB-VX configuration so your engineering team can validate CMS compatibility, touch drivers, and physical mounting prior to bulk factory production.

5. What warranty, spare parts, and installation accessories are included?

Every unit includes a 2-year comprehensive factory commercial warranty, standard mounting hardware (Flush Anti-Vibration Concealed Wall Bracket (Portrait / Landscape)), power cords matched to your destination country, and optional 1%–2% spare modular boards (power supplies, mainboards) for rapid on-site maintenance.
